TOKABERRY V2 - GLOOMBERRIES (Ball Jointed Doll) for FDM/Resin Printing

INSTRUCTIONS
Tokaberry Assembly Tutorial

HE'S BACK AND GLOOMIER THAN EVER!

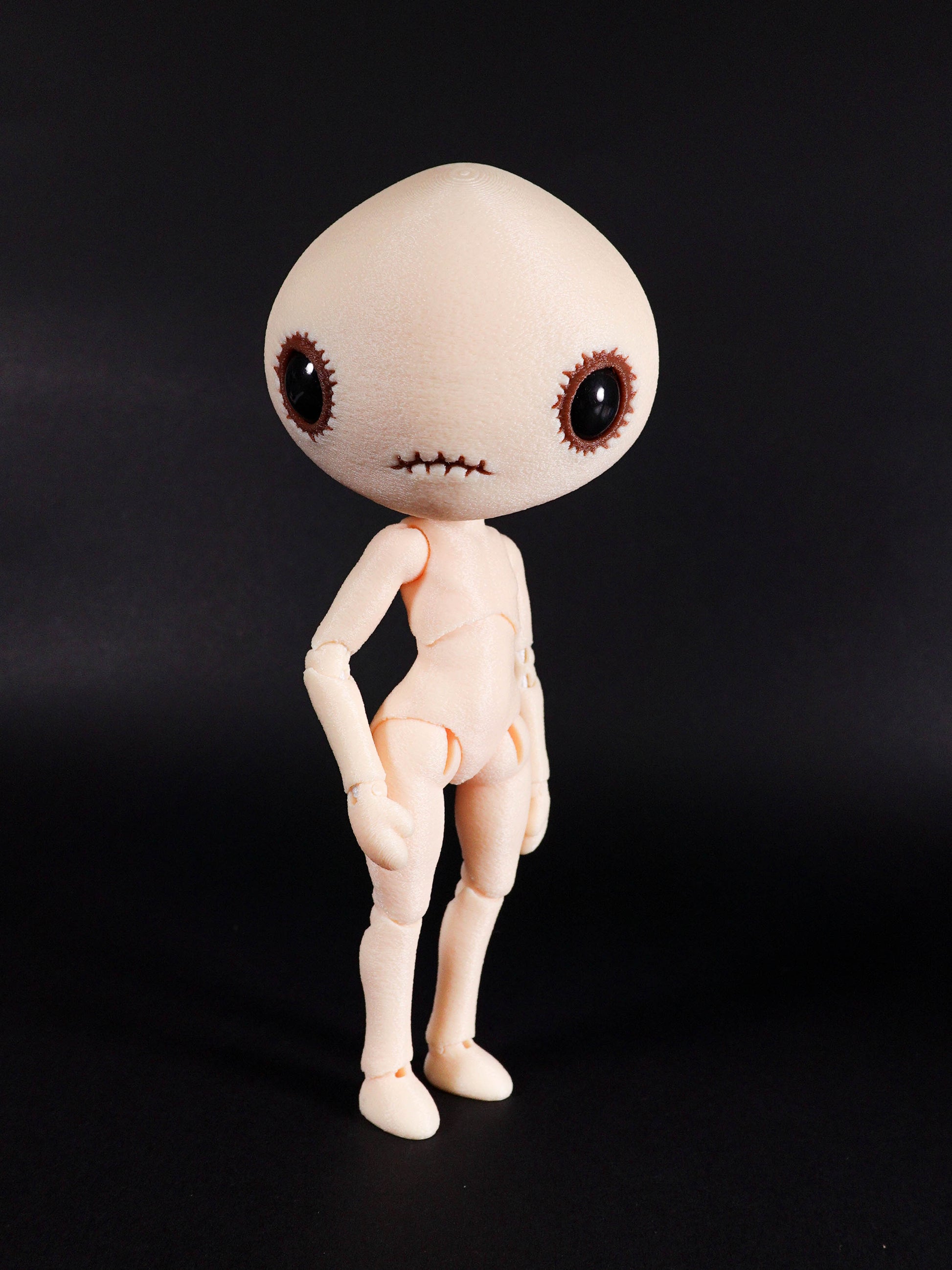

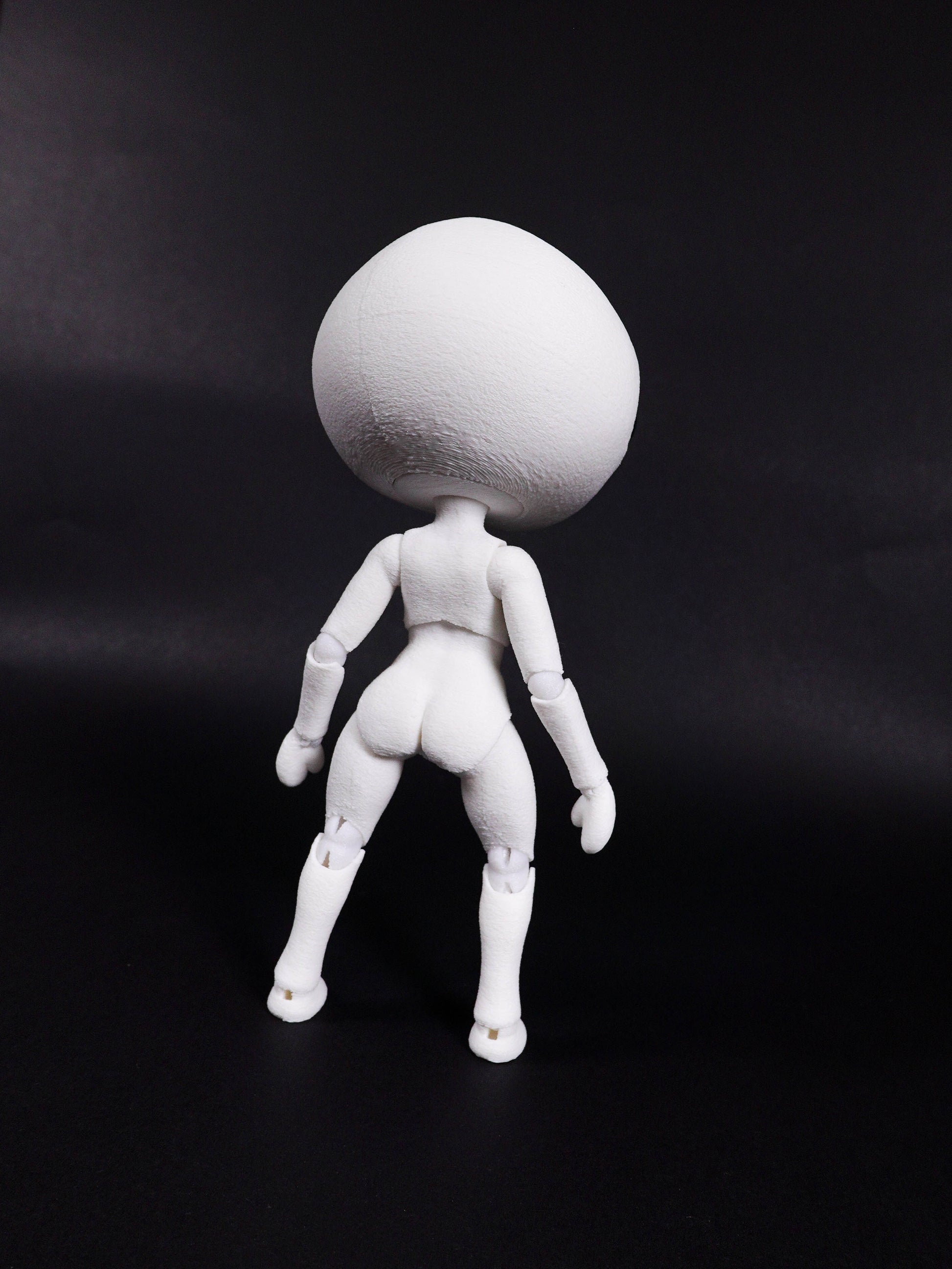

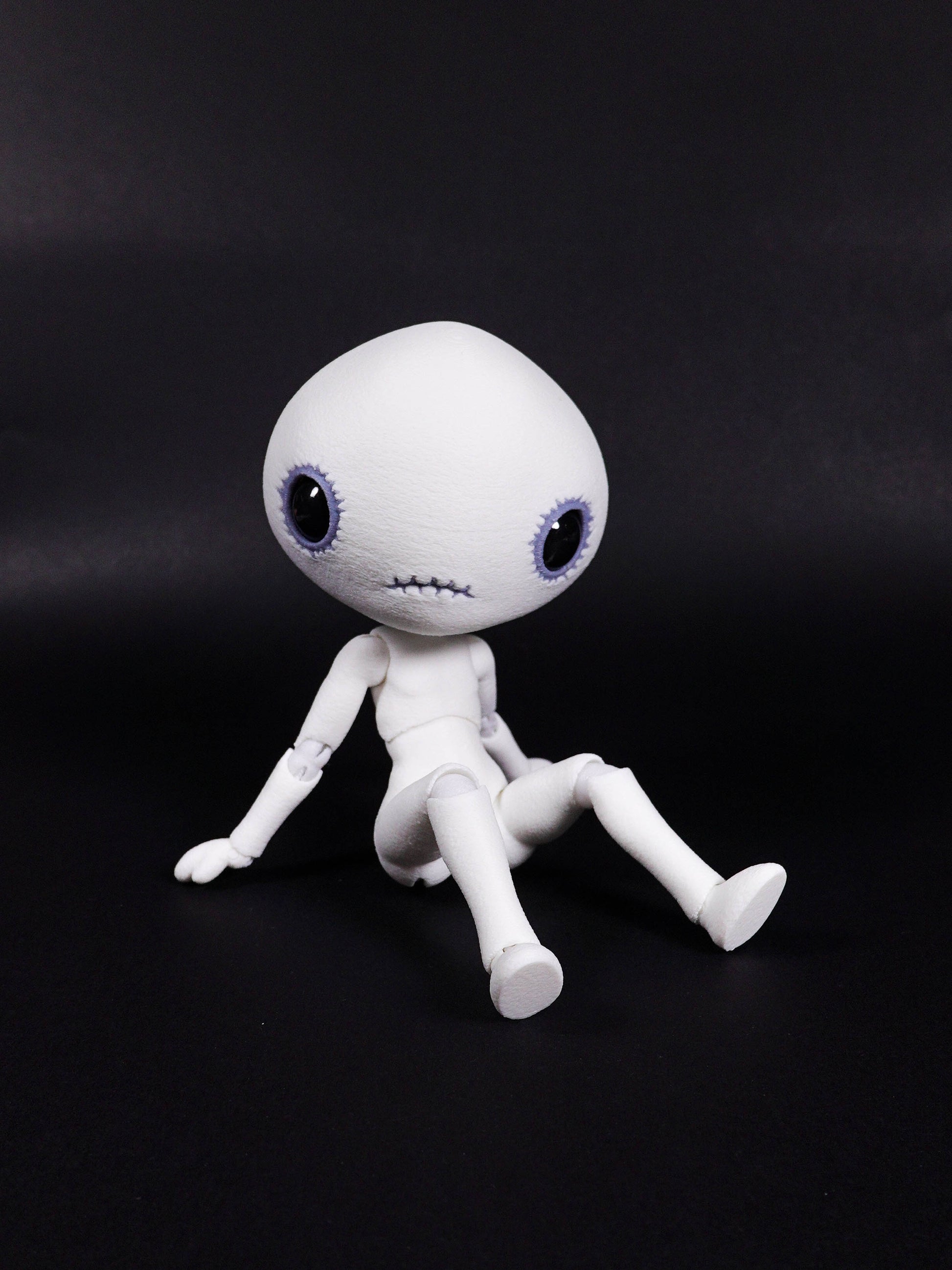

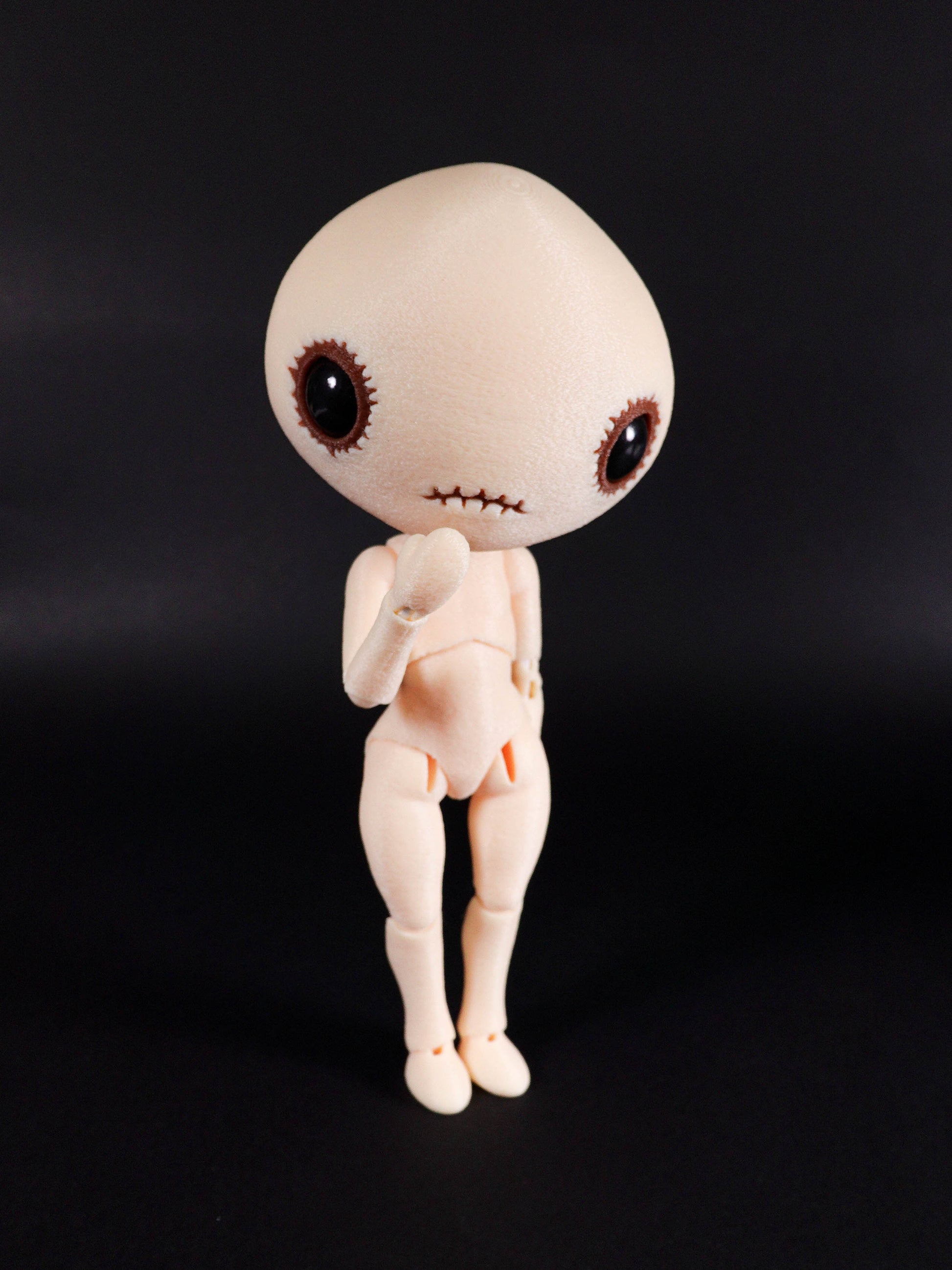

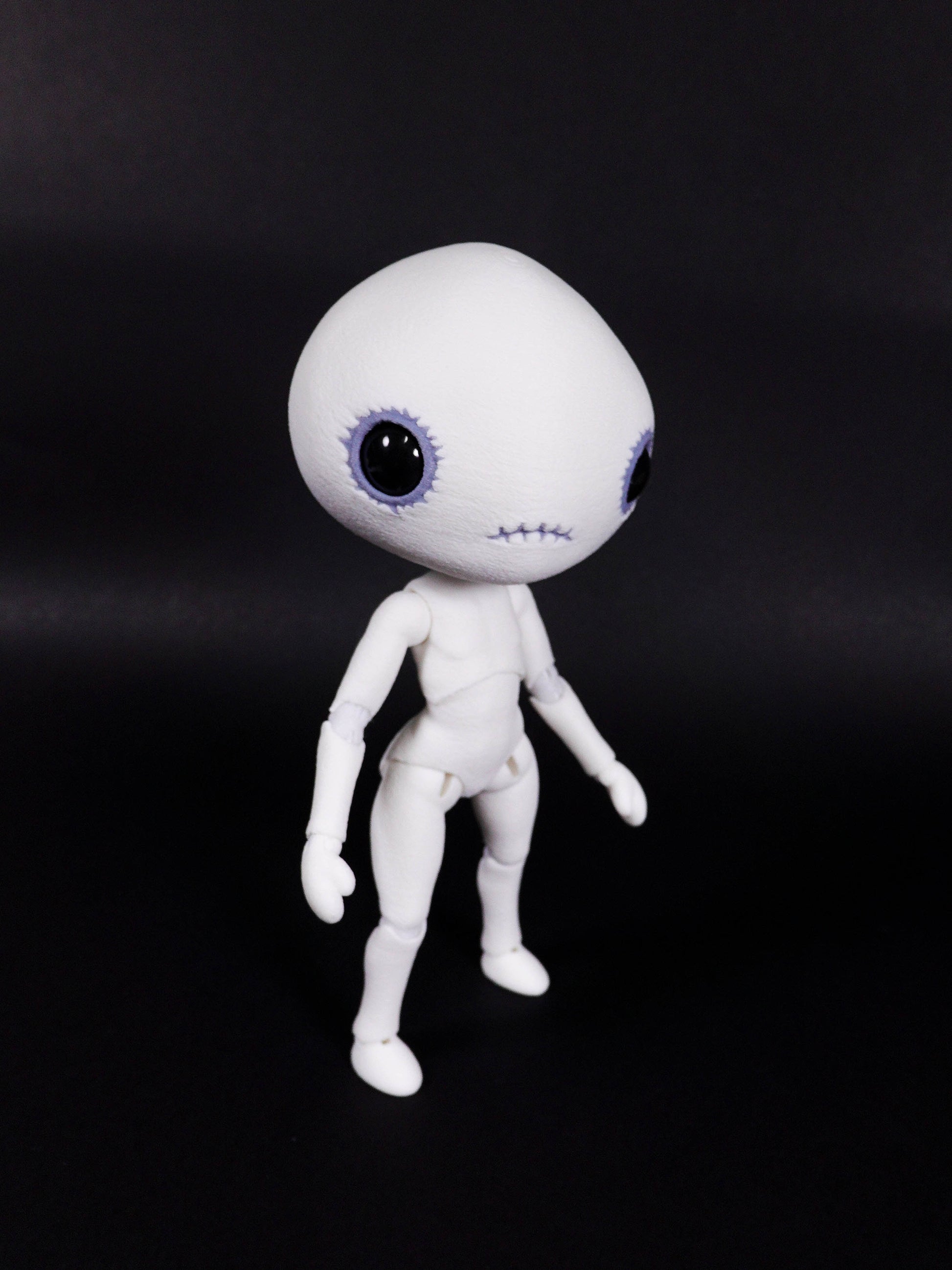

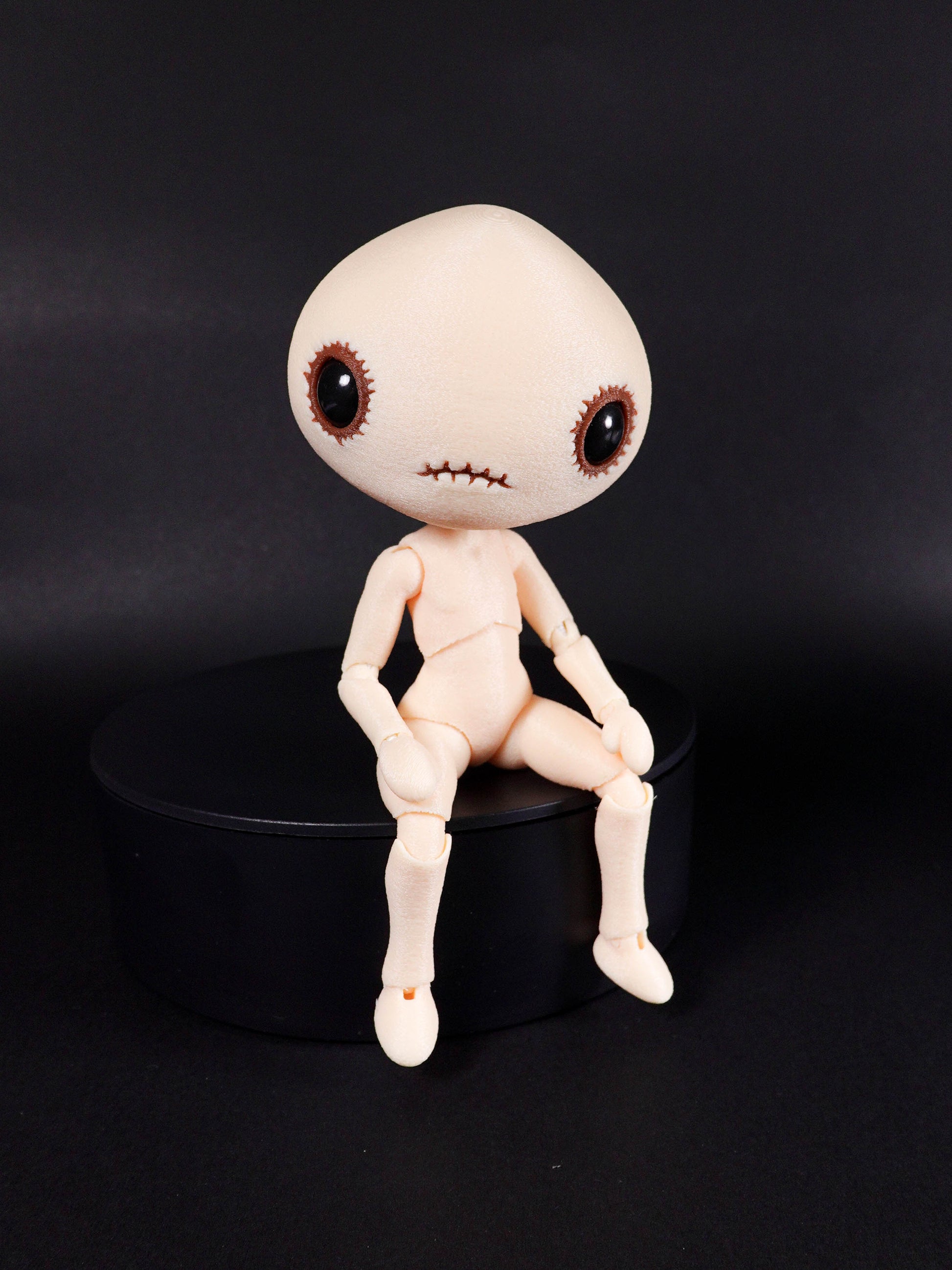

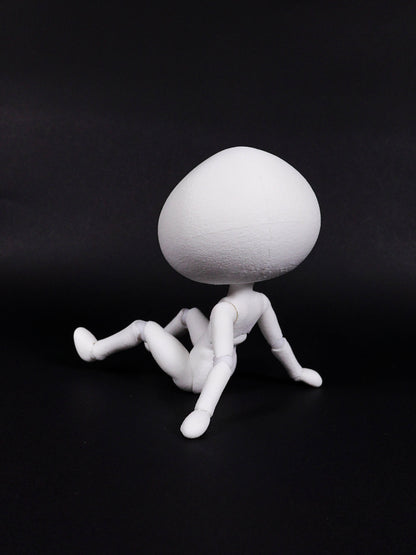

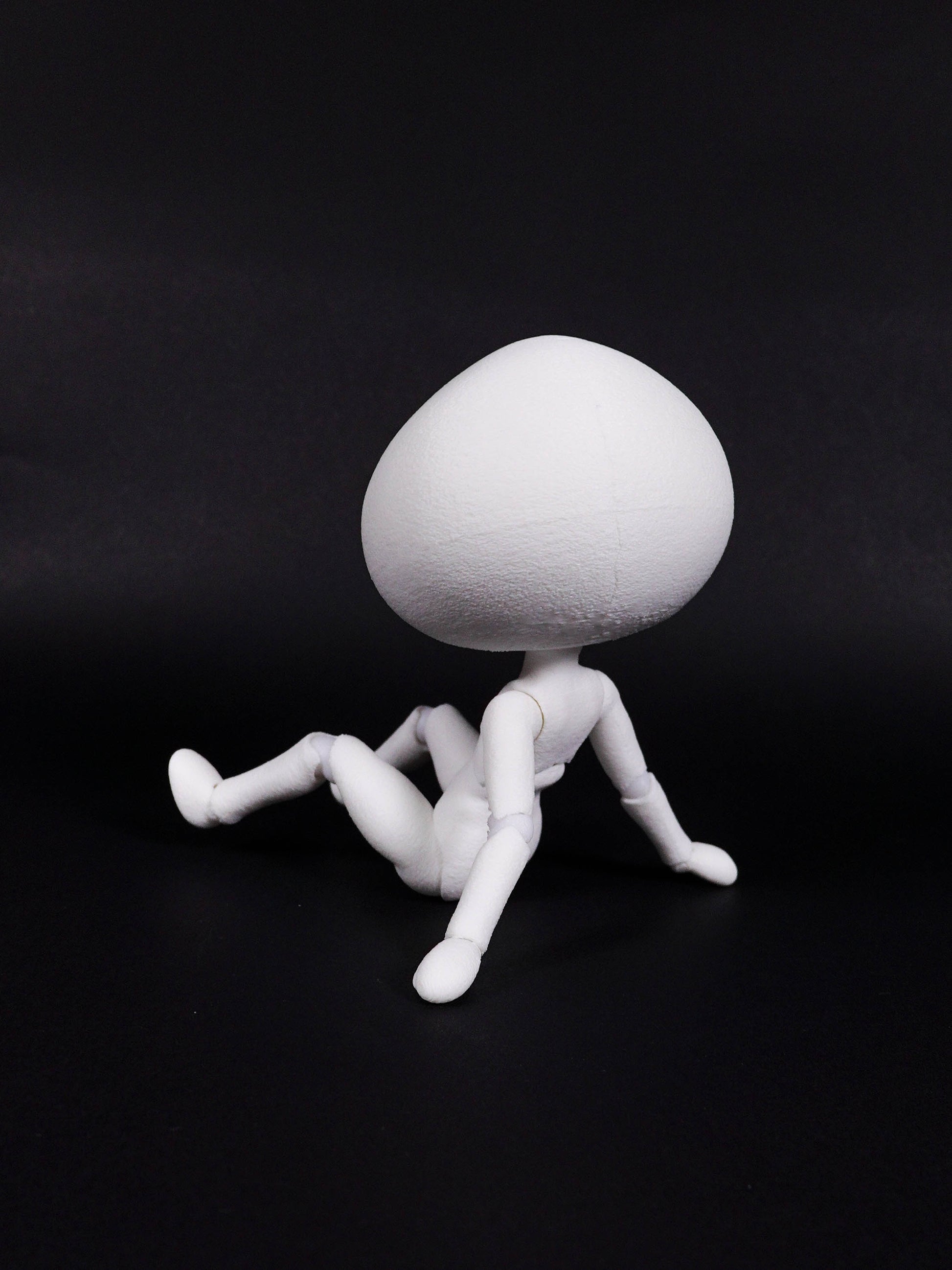

The Tokaberry was the first Gloomberry I ever designed and now I've given him a BIG UPGRADE to be much closer to my original vision of the morose little maggot!

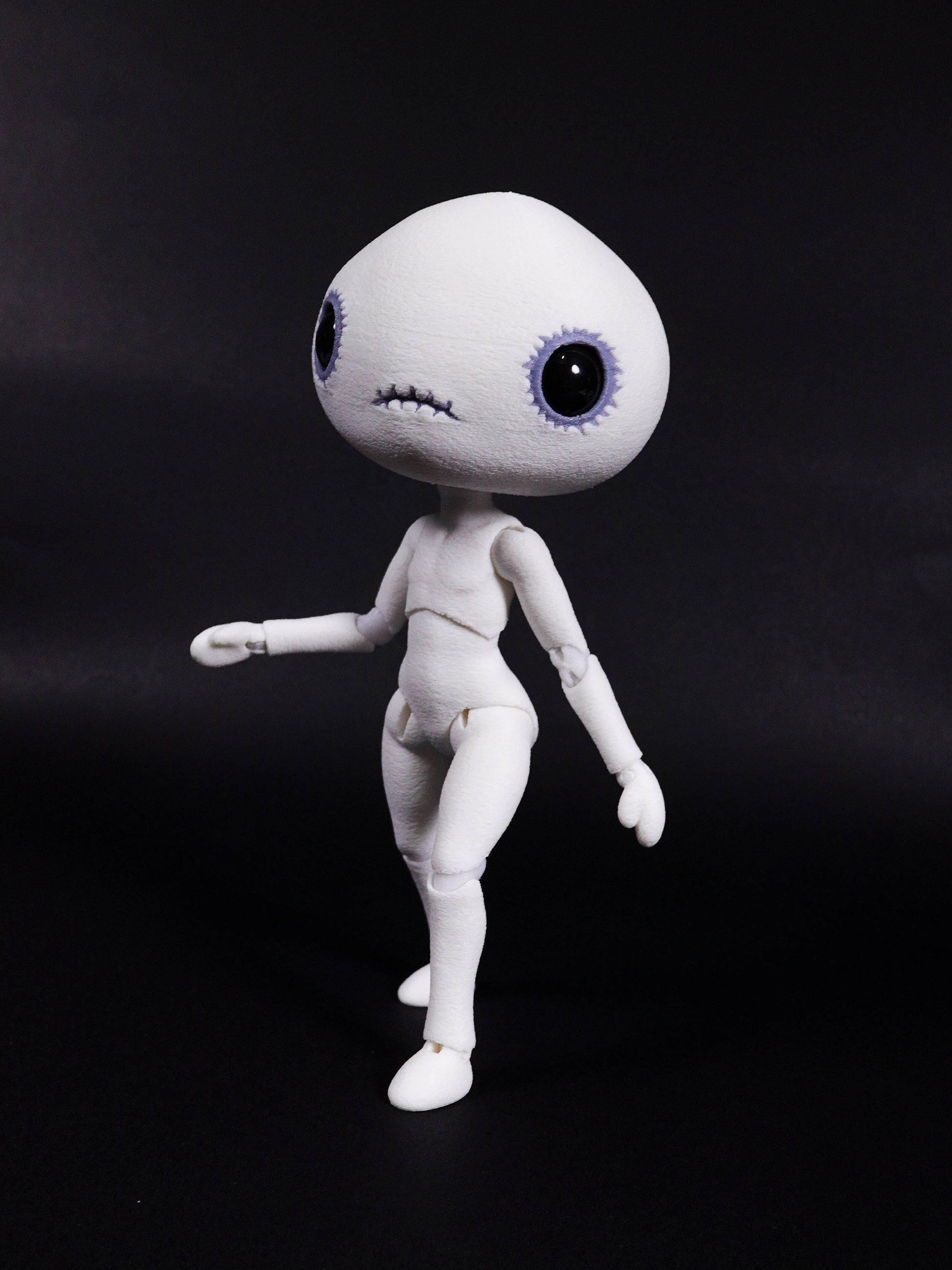

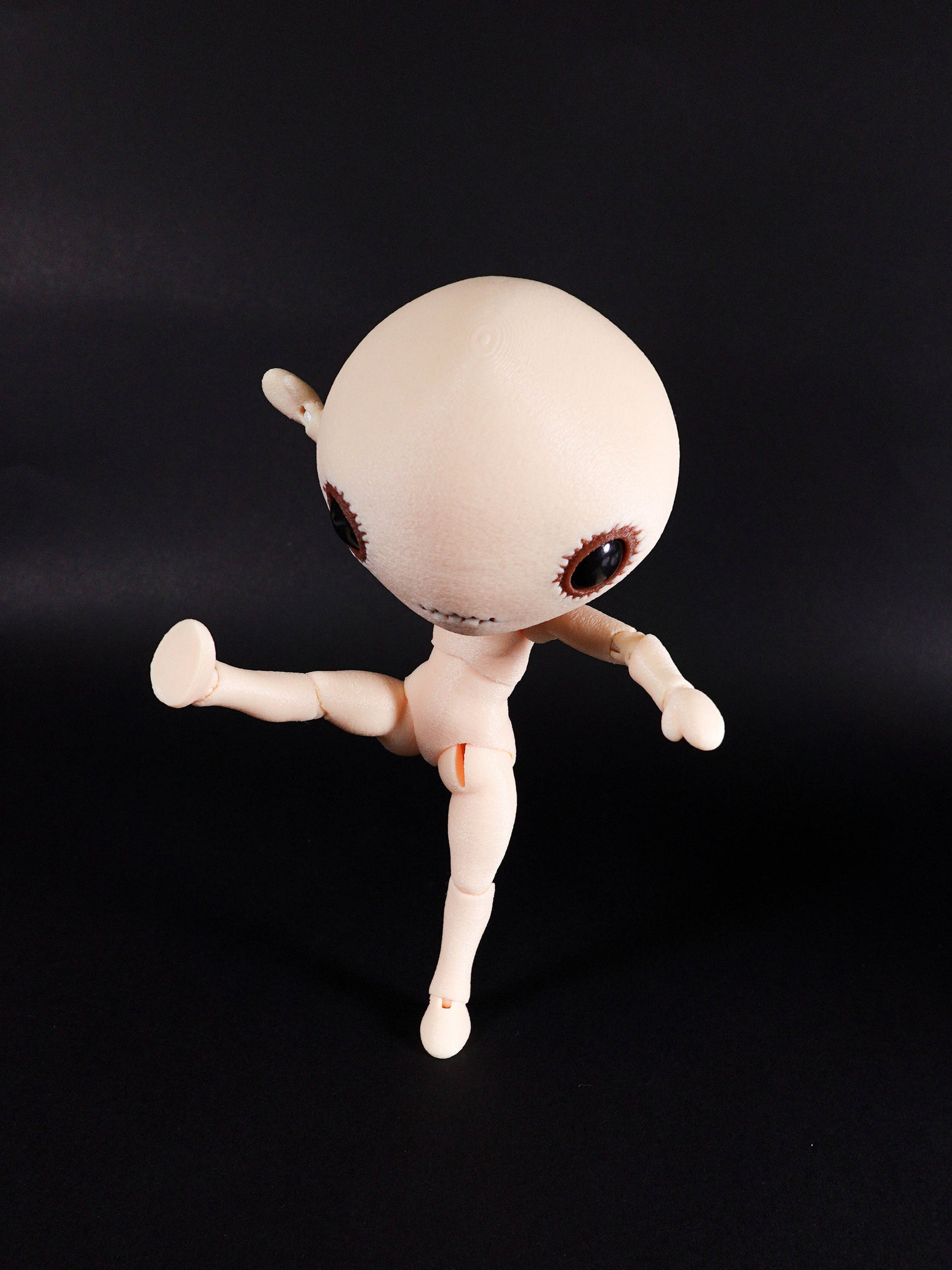

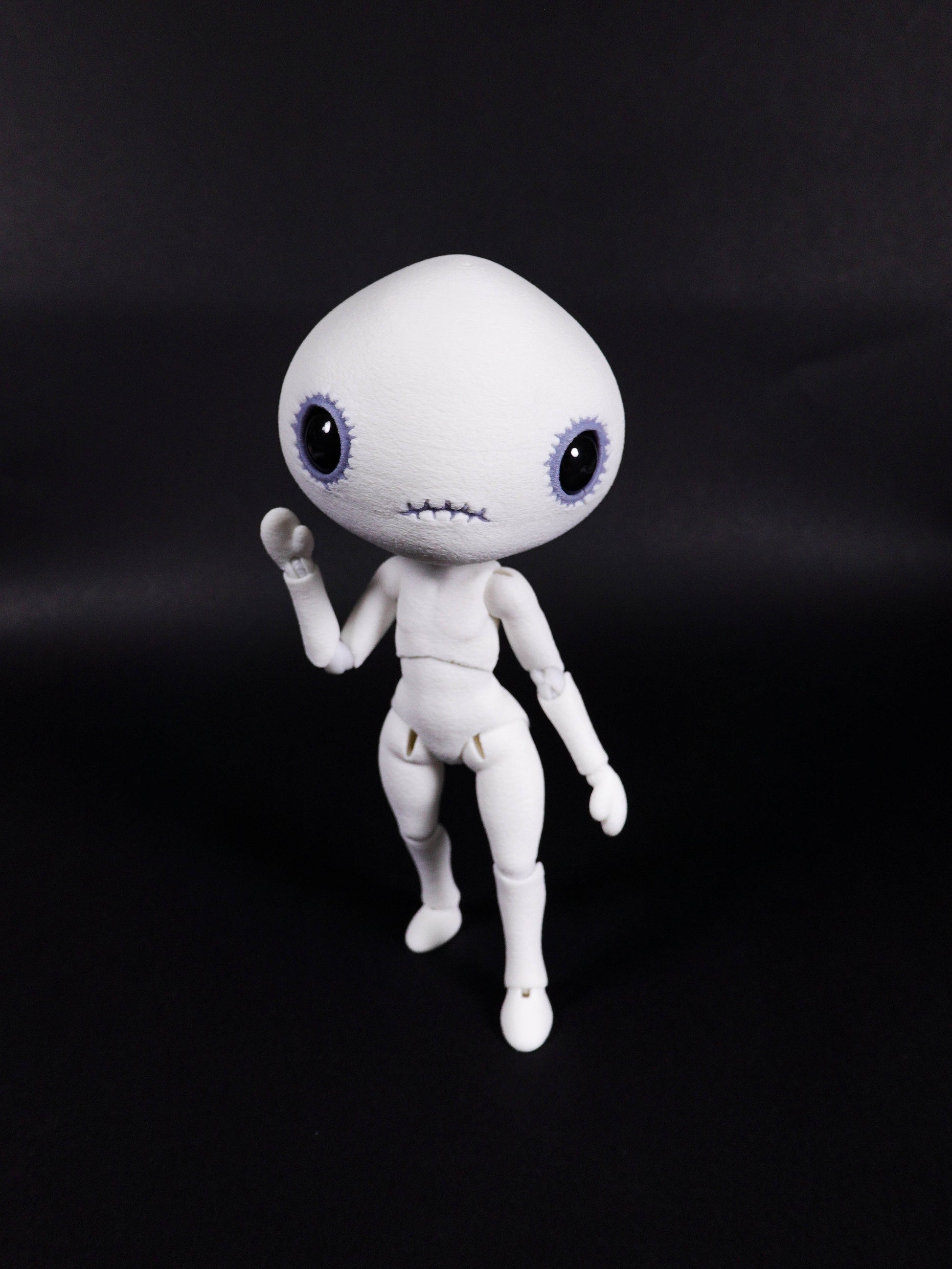

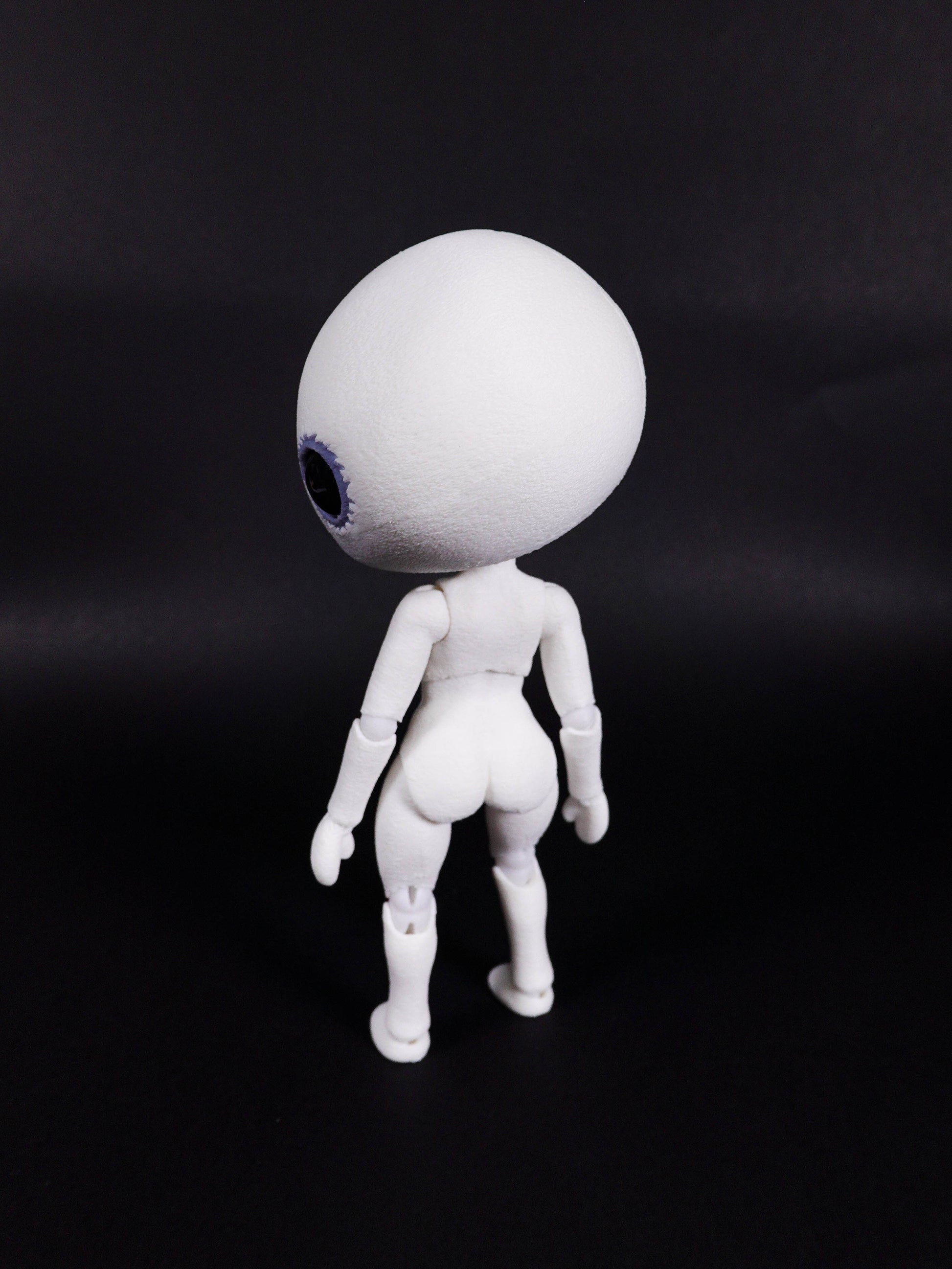

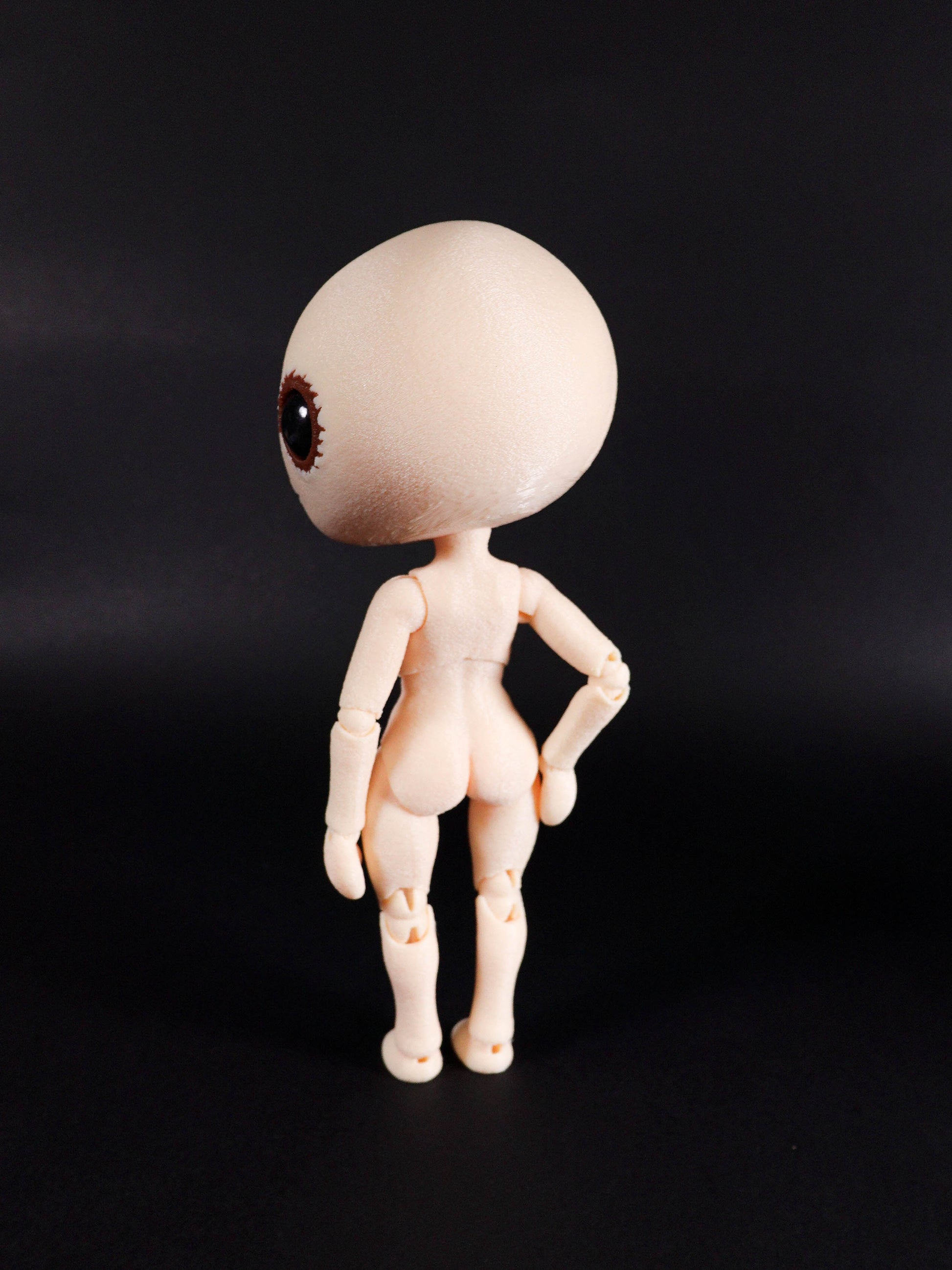

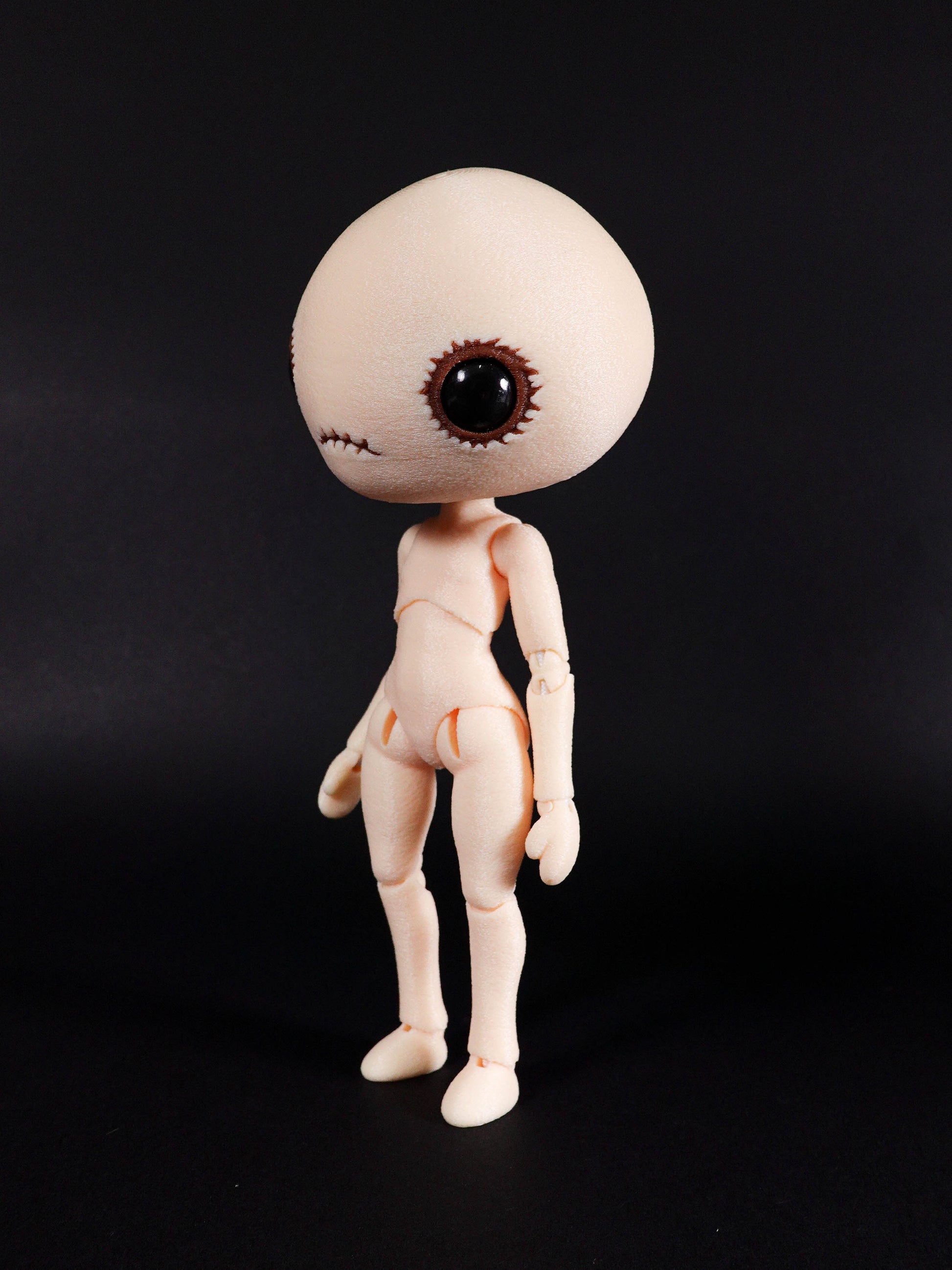

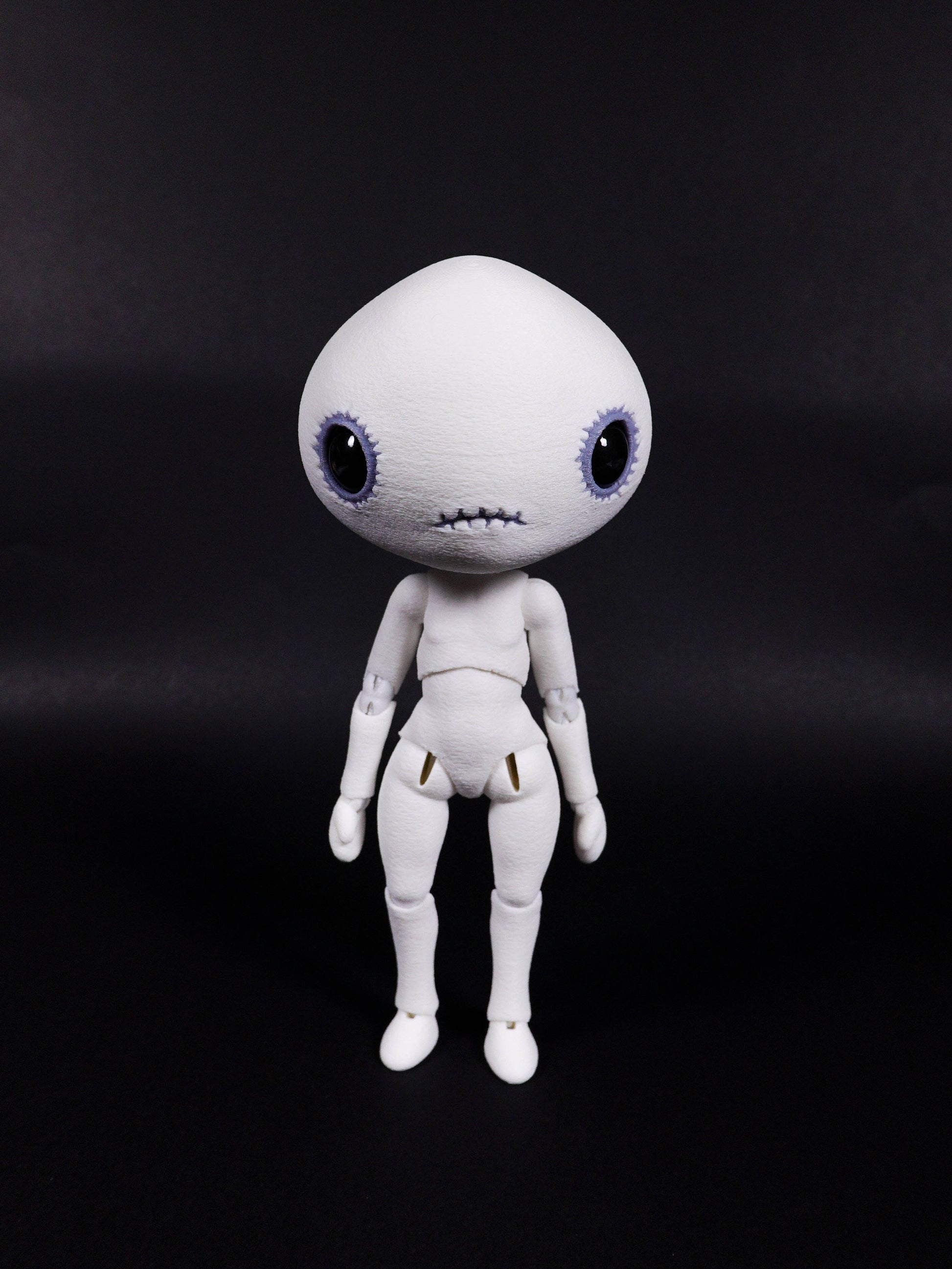

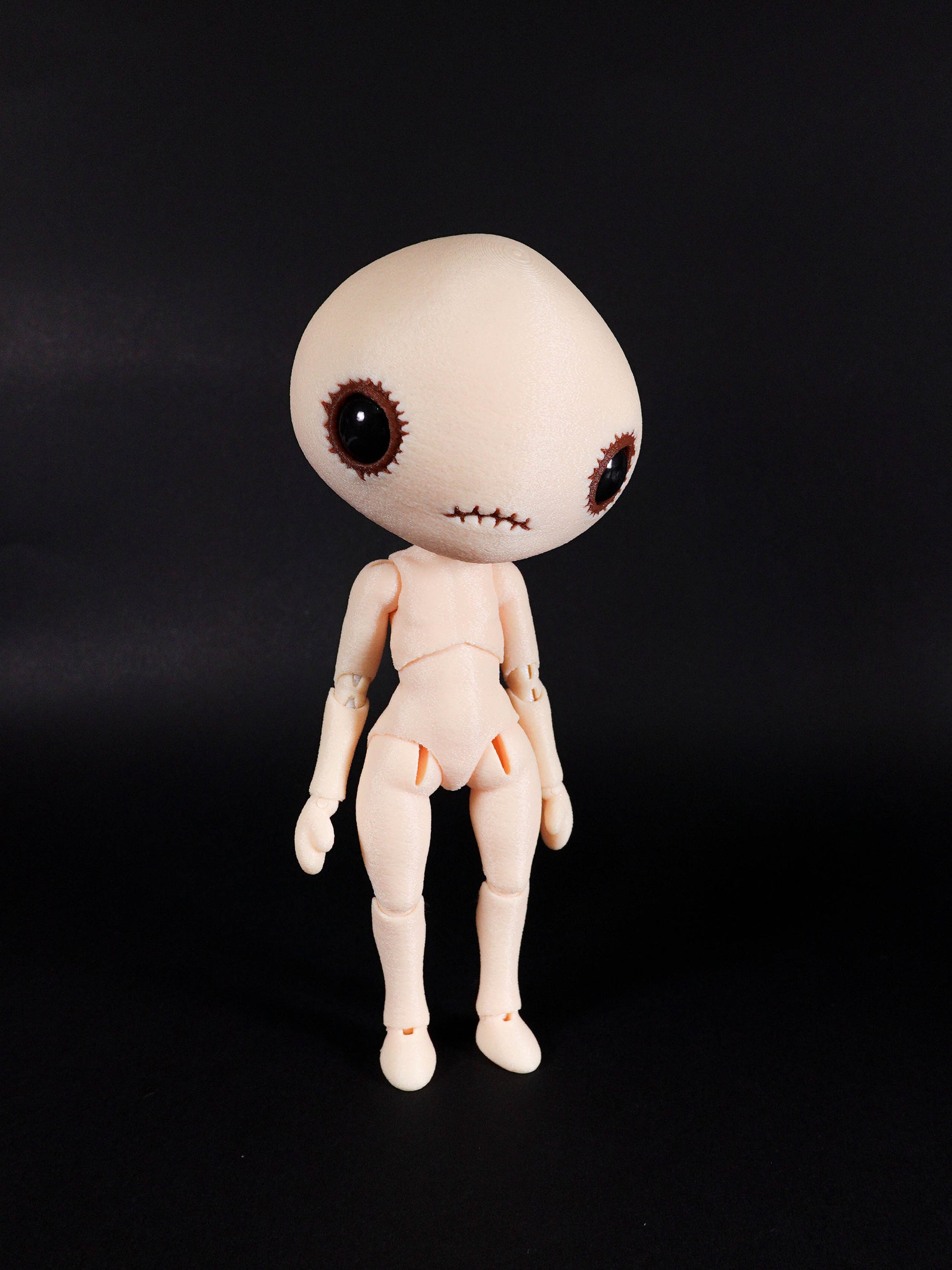

Unlike my other ball jointed dolls no wire or s-hooks are required for assembly, all you need are some magnets and a little elastic! The Tokaberry stands at approximately 15cm tall!

He's a very easy print whether you have a resin or an FDM 3D printer, and an even lighter breeze if you have a Bambu Labs 3D printer as I've included my Bambu Studio project file with all my settings as well as a full color version of the head for AMS systems.

I personally recommend printing in matte filament as the glossier the filament the less friction the joints will have. You can still use glossy filament if you like but in that case you may have to hot glue suede the joints to keep the figure stable!

PARTS REQUIRED:

To assemble him all you need is:

2mm elastic cord to string his body
Example

Ten 6x3mm magnets for the head & eyes (full tutorial linked above)
Example

(OPTIONAL) UV Nail gel and UV torch to gloss up the eyes
Example

(FOR RESIN ONLY) If you're printing in resin and don't have any 1.75mm filament to pin the hands and feet you can use 1.6mm craft wire

FDM PRINT SETTINGS (premade settings I use are included in my Bambu Studio Project):

Tested and prints nicely with both a .2 and a .4 nozzle.

Layer height - .12 if using a 0.4 nozzle
Infill - 15% Gyroid
Fuzzy Skin (To mask layer lines effectively in combination with the surface texture) - .15 Point Distance .15 Thickness
Supports - I always use manual as most parts are made to be printed on top of supports rather than on the build platform. All my custom support application is included in the Bambu Studio project.
Color - All of the parts are pre-painted with Bambu Studio's in-software tools/custom modifiers so if you have a Bambu Labs printer and a AMS system you'll be able to print the parts in full color. This particular file should be usable in Slicers for alternative printers that utilise a similar multi-material system.

RULES:

This STL is licensed for non-commercial use, this means you are allowed to make as many copies as you like/make modifications to the files but you cannot sell the files or any prints you produce using them.

However if you're interested in selling prints made using this file, if you head to my PATREON I have a Merchant tier that will allow for commercial sale of prints for as long as you remain subscribed.

I'D ABSOLUTELY LOVE TO SEE ANYTHING YOU MAKE WITH MY FILES SO PLEASE TAG ME WHEREVER YOU POST! I'm @Thanatoys on most platforms!
